Best Bathroom Sunken Waterproofing Methods in Chhattisgarh

A bathroom is the most high-risk moisture zone in any modern residential or commercial building. Within a typical floor plan, architects design a depressed or "sunken" concrete slab—usually lowered by 200 mm to 450 mm relative to the main floor level—to accommodate drainage pipes, traps, and sanitary utilities cleanly beneath the visible tile layer. However, because these utility lines are permanently buried under a bed of filler material, any hairline joint fracture or microscopic plumbing leak can slowly fill the entire structural basin with water.

In central India’s variable climate, choosing an unverified or poorly executed system for Bathroom Sunken Waterproofing in Chhattisgarh can cause severe, long-term issues. Over time, trapped water migrates horizontally through porous concrete walls, destroying expensive internal wall plaster, bubbling paintwork in adjoining bedrooms, and rusting structural steel reinforcement bars.

To prevent these issues, property owners must understand the chemistry of material selection and the precise steps required to create a permanent, watertight internal barrier.

The Ideal Sunken Slab Sealing Strategy

The most reliable method for sealing a bathroom sunken slab involves a multi-layered combination of high-density crystalline slurry coats applied to the raw concrete base, followed by a flexible, two-part acrylic polymer-modified cementitious elastomeric membrane. This combination is completed by installing specialized mechanical pipe sleeves with non-shrink polyurethane sealants around every plumbing penetration point. This dual-action approach shields the building against both direct water leaks and continuous hydrostatic vapor transmission.

Bathroom Sunken Waterproofing: A specialized chemical engineering process where the lowered concrete structural floor and vertical walls of a bathroom basin are coated with continuous, non-porous hydrophobic membranes. This application forms an uninterrupted internal seal that prevents wastewater from seeping into the building's main concrete foundation.

Bathroom Structural Protection Baselines

Before selecting materials or starting construction, property managers and structural engineers should review these critical baseline metrics for internal wet-area protection:

• The Hidden Ingress Cycle: A slow plumbing leak of just 2 ml of water per minute can saturate a typical bathroom's under-floor filler material within 90 days, generating continuous hydrostatic pressure against the structural slab.
• Elongation Performance Factor: Premium acrylic polymer-modified cementitious systems offer an elongation capacity of 100% to 150%, allowing them to safely bridge structural micro-cracks that develop as a building settles over time.
• Coving Metric: Every wall-to-floor junction requires a 50mm x 50mm concave angle fillet (coving) made from polymer mortar to distribute structural loads and prevent the membrane from tearing at sharp 90-degree corners.
• Long-Term Service Life: A professionally applied multi-coat chemical system provides a reliable service life of 12 to 15 years, outlasting old-fashioned, unbonded plastic sheet liners or basic cement-slurry washes.

To better understand the structural dynamics of a wet-area protection system, it helps to explicitly define the core components involved:

• Sunken Slab: A concrete structural floor section cast lower than the surrounding rooms to hide plumbing pipes and drainage traps beneath the finished tile floor.
• Acrylic Polymer-Modified Cementitious Coating (PMMC): A tough, two-component protective coating made by mixing liquid acrylic polymers with a specialized cementitious powder. This blend combines the strength of concrete with the flexible elasticity of synthetic polymers.
• Angle Fillet (Coving): A sloped, triangular mortar wedge installed at sharp 90-degree corners where horizontal floors meet vertical walls. This fillet smooths out structural stress points and prevents coatings from cracking.
• Polyurethane (PU) Grout Sealant: A high-adhesion, non-shrink elastomeric chemical compound used to seal joints between differing materials, such as plastic or metal drainage pipes and structural concrete.

Understanding Sunken Basin Systems

What is it?

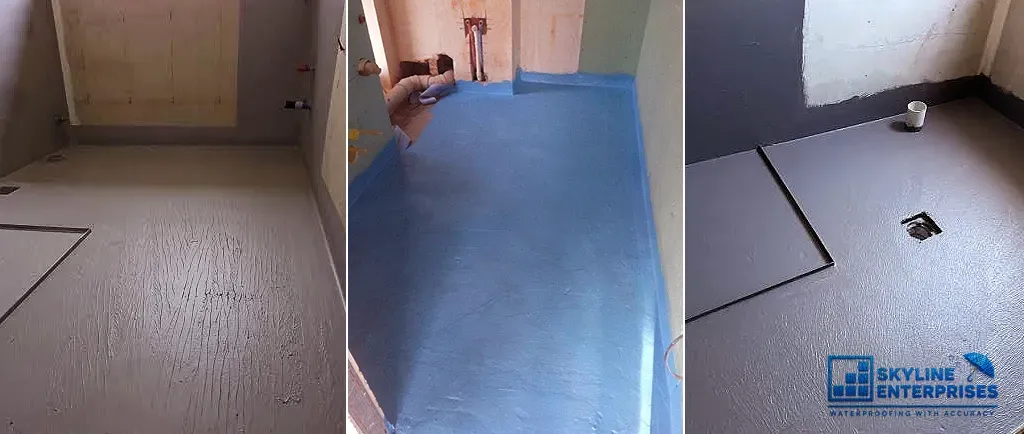

Bathroom sunken slab waterproofing is a specialized structural shielding process designed for depressed floor zones. It creates an internal, chemical-resistant barrier across the raw concrete substrate before plumbing lines are installed and the basin is filled.

Why does it matter?

Without this specialized treatment, standard concrete acts like a dense sponge. Water leaking from buried pipe joints travels through the concrete’s natural capillary pathways. This migration causes peeling paint on adjacent walls, damp spots on lower ceilings, structural concrete carbonation, and gradual corrosion of the building's steel reinforcing framework.

How does it work?

The system utilizes two distinct protective layers. First, active crystalline chemicals penetrate deep into the concrete's pores, reacting with moisture to grow non-soluble crystals that block water movement from within. Second, a flexible elastomeric polymer layer is applied over the top, forming a tough, continuous rubber-like skin that bridges minor structural cracks and handles building movement.

Who should use it?

This engineering standard should be utilized by residential homeowners, commercial high-rise developers, and hospital facility managers across Chhattisgarh's growing urban centers—including Raipur, Bhilai, Bilaspur, and Durg—where multi-story concrete structures face high humidity and heavy use.

Benefits

• Permanent Sealing: Eradicates the root cause of dampness on lower floor ceilings.
• High Elasticity: Bridges future hairline cracks up to 1 mm wide without tearing.
• Low Added Mass: Eliminates the need for heavy, traditional brick-bat layers, reducing structural dead load on the building.
• Excellent Bond Strength: Adheres directly to raw concrete, preventing water from traveling underneath the membrane.

Drawbacks

• Demanding Prep Needs: Requires complete mechanical surface cleaning down to bare concrete; cannot be applied over existing loose dust or oil residues.
• Curing Time Dependencies: Each layer must cure completely under controlled conditions, meaning the process cannot be rushed during active construction.

Real-World Example

Consider a multi-story residential apartment complex in Raipur. A master bathroom's concealed drain pipe joint developed a hairline crack. Because the bathroom basin was properly protected with a multi-coat elastomeric system and fitted with an active escape drain, the leaking water safely exited through the drainage line rather than soaking into the concrete ceiling of the apartment below.

Alternatives

• Liquid Polyurethane Membranes: Provide exceptional elasticity but require an absolutely bone-dry substrate (moisture below 4%) to prevent blistering.
• Pre-formed PVC Sheet Liners: Fast to install but rely heavily on manual seams and lap joints, which are prone to leaks if poorly welded.

Technical Comparison: Sunken Area Treatment Methods

Why Bathroom Sunken Waterproofing in Chhattisgarh Requires Precision

Standard residential bathroom slabs frequently develop leaks due to structural movement around critical stress zones—specifically the interfaces between plastic PVC drain pipes and the surrounding rigid concrete floor. Because plastic and concrete expand and contract at completely different rates, temperature shifts create micro-gaps around pipes. If an installer applies a cheap, rigid cement wash instead of an elastic chemical system, these joints split open, allowing wastewater to drain directly into the structural slab.

Analytical Evidence and Research Focus

Internal field data and structural forensic assessments show that over 85% of multi-story building dampness issues originate from poorly sealed bathroom utilities. When water builds up inside a sunken basin, it creates constant hydrostatic pressure against the structural slab.

This moisture dissolves the calcium hydroxide present inside the concrete, leading to a process called leaching. You can easily spot this as white, salt-like deposits (efflorescence) forming on the ceilings and walls below. To prevent this chemical breakdown, installers must apply a resilient, polymer-modified barrier that separates the concrete substrate from standing water.

Step-by-Step Protocol for Executing Bathroom Sunken Waterproofing in Chhattisgarh

Achieving a long-lasting, leak-proof seal inside a bathroom basin requires a methodical, step-by-step application process. Field crews follow this established engineering protocol to ensure reliable performance:

1.Mechanical Surface De-Grit & Grinding: Phase 1: Substrate Preparation.

The raw concrete basin floor and vertical walls up to a height of 300 mm are ground using mechanical wire-brush tools. All loose sand, mortar drops, dust, and wood fragments from shuttering work are completely removed to reveal a solid, clean concrete surface.

2.Pipe Sleeve Sealing & Core Filleting:  Phase 2: Reinforcing Stress Points.

All plumbing pipes and drainage lines are cleaned. The gaps around pipe penetrations are cut out, cleaned, and packed tightly with a non-shrink, high-adhesion polyurethane expansion grout to create a flexible, watertight seal between the plastic and concrete.

3.Angle Fillet Construction (Coving): Phase 3: Stress-Line Mitigation.

A 50mm x 50mm sloped angle fillet (coving) is built along all horizontal-to-vertical wall junctions using a polymer-modified mortar. This eliminates sharp 90-degree corners, smoothing out stress concentrations and preventing the membrane from tearing.

4.Crystalline Slurry Application: Phase 4: Base Layer Active Defense.

The concrete surface is dampened with water to open its pores. A single coat of reactive crystalline waterproofing slurry is brushed across the basin floor and vertical walls, penetrating deep into the capillary network to block moisture from within.

5.Two-Coat Acrylic Polymer Application: Phase 5: Elastic Shield Layering.

A flexible, two-part acrylic polymer-modified cementitious membrane is applied in two separate coats. The second coat is applied at a 90-degree angle to the first to ensure uniform coverage. A fiberglass mesh layer is embedded into the coating around all pipe joints for extra strength.

6.Hydrostatic Flood Testing: Phase 6: Structural Verification.

The completed chemical system is allowed to cure for 72 hours. All drainage pipe openings are capped, and the bathroom basin is flooded with water to a depth of 150 mm. The water level is monitored for 48 hours to confirm absolute water tightness before backfilling.

Frequently Asked Questions (FAQ)

What is the ideal height for applying waterproofing coatings up bathroom walls?

The waterproofing coating should always extend up the vertical walls to a minimum height of 300 mm from the finished floor level inside the sunken zone. For shower areas and walls directly exposed to regular water splashing, the protective coating should extend up to a height of 1,800 mm (6 feet) to prevent water from migrating through tile grout into adjoining rooms.

Why should traditional coal-tar or bitumen methods be avoided inside bathrooms?

Old-fashioned coal-tar or bitumen coatings become rigid and brittle over time, losing their ability to handle minor structural shifts. They also release strong, unpleasant chemical odors that can linger inside enclosed residential spaces for months. Additionally, these materials do not bond well with modern cement-based tile adhesives, often causing floor tiles to loosen or hollow out over time.

What lightweight materials are recommended for filling a sunken slab basin?

Traditional fillers like heavy brick bats or dense river sand add unnecessary weight to a building's structure and can trap water. Modern construction practices utilize lightweight options like expanded clay aggregates, aerated autoclave blocks, or cellular lightweight concrete (CLC) chips. These materials minimize structural loads while allowing any accidental moisture to drain away safely.

Can I skip structural waterproofing if I use premium, water-resistant tile grout?

No. Standard tile grouts, including premium epoxy varieties, can develop micro-cracks over time due to building settlement, foot traffic, and thermal expansion. Once grout lines crack, water seeps directly into the sub-floor space. Relying on tile grout as your sole water barrier often leads to hidden leaks and costly repairs down the road.
